The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Thinne Type Tactile Switches RZTM

• Rating：12VDC 50mA

• Travel：0.25mm

• Life：100,000~300,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：A=180gf B=260gf

• Operating Temperature：-30℃ ~80℃

• Height(ZTM-5)：15=1.5mm 17=1.7mm
20=2.0mm 43=4.3mm

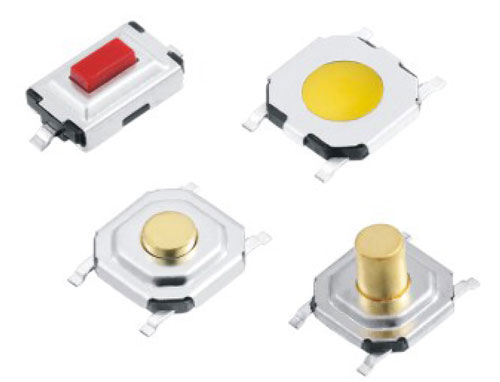

Thinne Type Tactile Switches RZTM Figure

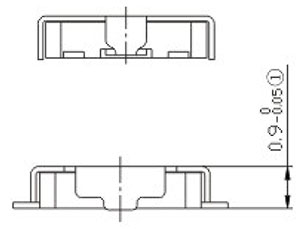

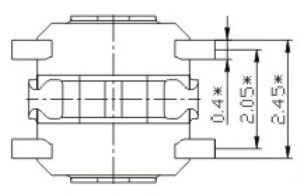

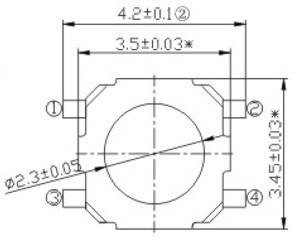

Thinne Type Switches RZTM Structure Diagram

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Life	Operating Temperature	Height(ZTM-5)	Travel	Download
RZTM-385	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTM-3307	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTM-3309	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTM-3312	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTM-325	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTMU-325	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTM-415	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTMF-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTMR-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTMS-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
RZTMU-5	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	100,000~300,000 cycles	-30℃ ~80℃	15=1.5mm 17=1.7mm 20=2.0mm 43=4.3mm	0.25mm	NULL
