The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

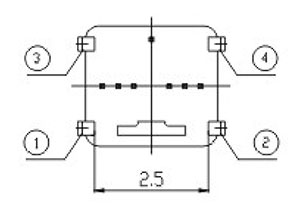

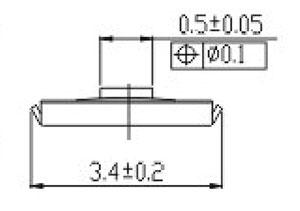

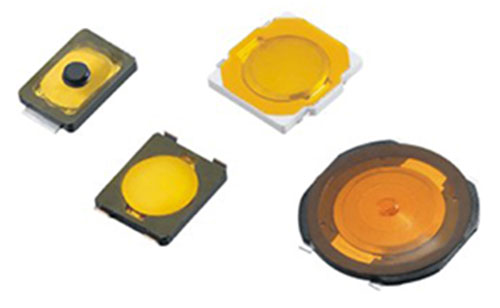

Ultra Low Profile Tactile Switches R11

• Rating：12VDC 50mA

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance ：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：180gf 260gf

• Travel：0.25mm

• Life：100,000~300,000 cycles

• Operating Temperature：-30℃ ~80℃

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Operating Temperature	Download
R11-2428	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-2630	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-2616	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-2030	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-3131	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-3131A	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-3738	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-4545	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-4836	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-4827	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
R11-74073	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	NULL
