The push button switch, also known as the control button, is a low-voltage electrical appliance that is manually and generally automatically reset. The button is usually used to issue a start or stop command in the circuit to control the on and off of the electrical coil current of the electromagnetic starter, contactor, relay, and the like.

The push button switch is a kind of electric device that is used to switch on and off the small current circuit when the action is released. Generally used in control circuits with AC and DC voltages below 440V and currents less than 5A.

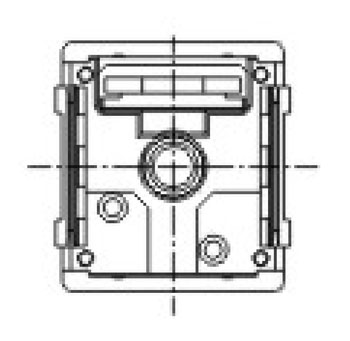

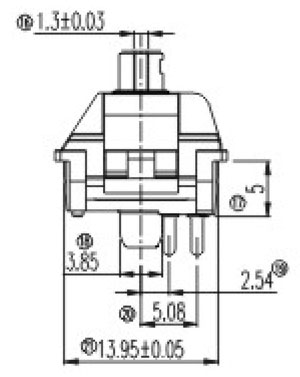

Key Switches REPG

• Rating：DC 30V 0.1A

• Initial Contact Resistance：20mΩ Max

• Insulation Resistance：DC 500V 60 Sec.100MΩ Min.

• Dielectric Voltage：AC 500V(50~60HZ)60 Sec

• Tactile Travel：1.8mm

• Total Travel：3.6-4.0mm

• Work Travel：2.2±0.6mm

Part Number	Rating	Initial Contact Resistance	Insulation Resistance	Dielectric Voltage	Tactile Travel	Total Travel	Work Travel	Download
REPG150B02P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
REPG150Q30P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
REPG150R02P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
REPG150T02P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
REPG150W03P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
REPG150W05P	DC 30V 0.1A	20mΩ Max	DC 500V 60 Sec.100MΩ Min.	AC 500V(50~60HZ)60 Sec	1.8mm	3.6-4.0mm	2.2±0.6mm	NULL
